DigitalFXplore

DigitalFXplore is a complete end‑to‑end signal‑chain platform for embedded audio effects processing, taking analog input through a fully digital processing path and back to analog output. It’s built for inline instrument and vocal effects, where low latency, high dynamic range, and creative flexibility matter.

At its core, DigitalFXplore uses the discrete SigmaXplore 3 ADC/DAC architecture, expanded with the additional subsystems required for a full effects‑processing environment. These include:

• 128 Mbit SRAM on a dedicated PMOD port, providing effectively unlimited read/write cycles for delay lines, convolution buffers, granular slicing, and other memory‑intensive effects.

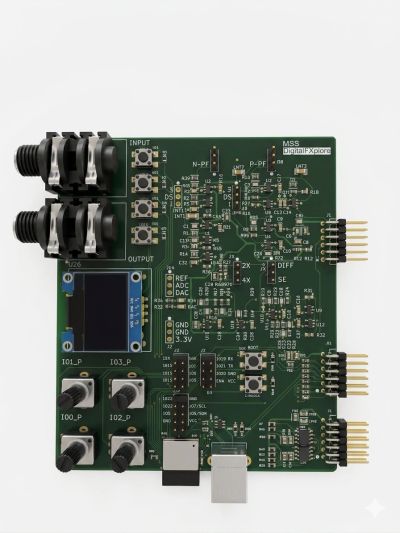

• ESP32‑C6 subsystem with four buttons, four potentiometers, a 128×64 OLED display, and 4 MB of flash — ideal for user interfaces, presets, configuration menus, and even OTA updates or remote FPGA bootloading.
• Two 1/4‑inch mono jacks for instrument/line‑level audio I/O directly connected to the ADC and DAC core with input pre-conditioning.

When paired with the MOC6 FPGA board, the system becomes a dedicated digital effects processor with over 30× the DSP throughput of an ARM Cortex‑M7, enabling effects that are simply not possible on microcontroller‑based platforms. You can layer, slice, warp, and recombine the audio spectrum in ways that produce genuinely new and original sounds.

Despite the intimidating reputation of DSP, building effects in HDL is often more intuitive than writing compiled code. At its heart, DSP is just adding, subtracting, and multiplying. With Vivado’s block‑diagram editor, creating or modifying effects becomes a visual process — connecting, rearranging, or inserting modules is as simple as drawing wires.

If you're new to DSP or FPGA‑based audio, DigitalFXplore is designed to be the most accessible starting point: powerful, modular, and built for experimentation.
